Introduction
Jelly is a semi-solid dessert, which is popular among individuals of all age groups because of its sweet taste and unique texture (Yoon and Shin, 2018). Currently, extracts or juices derived from natural products are incorporated into jelly formulations for various purposes, such as for substituting synthetic colorants, increasing nutritional value, and increasing bioactivity (Kang et al., 2017; Lee et al., 2020). Carrot (Daucus carota L.) is a root vegetable cultivated worldwide. Carrot is considered an important vegetable because of its high nutritional value owing to high vitamin, bioactive pigment, and fiber contents (Arscott and Tanumihardjo, 2010), and is used as a functional ingredient in the production of carrot jelly (Kang et al., 2017; Nho et al., 2013). Typically, jelly is prepared using gelling agents (such as carrageenan and gelatin), sweeteners (such as sugar), and additives (coloring and flavoring agents). Sugar and gelling agents represent the main ingredients required for jelly production, and their variation in the jelly formulation is expected to influence its quality (Lee et al., 2008). However, the quality characteristics of carrot jellies associated with different gelling agents and sugars have not been studied.
Sugar plays important roles in the food system as a sweetener, in structure formation, and in reduction of water activity (Sandrou and Arvanitoyannis, 2000). However, the excessive intake of sugar can lead to development of metabolic disorders such as obesity and elevated blood pressure (Ahmad et al., 2020). Jelly contains large amounts of sugar, and previous studies have attempted to reduce or replace sugar in jelly products using fruit powder (Hwang et al., 2018), sugar substitutes (Riedel et al., 2015), and gelling agent mixtures (Khouryieh et al., 2005). Among these methods, sugar substitution is preferable in jelly production (Kim et al., 2008). Sugar substitutes represent sweetening agents that have sufficient sweetening capacity without an unpleasant aftertaste, and are non-carcinogenic and non-mutagenic (Gupta, 2018). Sugar substitutes are often used for therapeutic purposes, including assisting weight loss, dental care, and for managing diabetes mellitus and reactive hypoglycemia (Tandel, 2011). Moreover, sugar derivative sweeteners have been used to produce jellies that do not adversely affect consumer preferences (Choi et al., 2009).
Gelling agents, such as gelatin, pectin, agar, starch, carrageenan, and gellan gum represent food additives used to stabilize jelly (Banerjee and Bhattacharya, 2012). Gelatin is a biopolymeric protein derived from animal collagen, which has a reasonable cost and substantial production yield (Baziwane and He, 2003; Dai et al., 2018). Gelatin forms a stable three-dimensional gel by stabilizing hydrogen bonds with water molecules (Baziwane and He, 2003), and a semi-solid colloidal gel after heating and cooling (Banerjee and Bhattacharya, 2012). Carrageenan is a natural polysaccharide obtained from edible red algae (Necas and Bartosikova, 2013). Carrageenan forms helical gels in the presence of a suitable cation (Banerjee and Bhattacharya, 2012). The gelation of carrageenan involves a coil-to-helix transition, followed by the subsequent aggregation of helices (Campo et al., 2009). Owing to their gelling properties, these materials are widely used as gelling agents in jelly production. Furthermore, the characteristics of gelling agents (for example, critical minimum concentration and molar mass/degree of polymerization) and other conditions for gel formation (for example, presence of sugar, pH, ionic strength, and temperature) have a great influence on the textural properties, stability, and sensory characteristics of gel-based foods (Banerjee and Bhattacharya, 2012; Lee and Koh, 2017; Park et al., 2018). The effects of gelling agents, including gelatin and carrageenan, and sugars, including sucrose (SUC), sorbitol (SOR), and xylitol (XYL), on the characteristics of carrot jelly have not been investigated. Therefore, carrot jellies were produced in this study by varying these gelling agents and sugar substitutes. In addition, the quality characteristics of carrot jellies were measured to determine the optimal gelling agent and sugar.
Materials and methods
Carrots were purchased from a farm in Jeju Island, South Korea, and stored at 4°C until use. SUC (CJ Cheiljedang Co., Seoul, South Korea) and gelatin (Geltech, Busan, South Korea) were purchased from a local market. Carrageenan, XYL, and SOR were obtained from ES Food (Gunpo, South Korea).
The juice was obtained from peeled carrots using a Hurom juicer (HU-400; Hurom, Gimhae, Korea). The jelly formulation is listed in Table 1. Carrot jellies were produced using a previously described method with certain modifications (Park and Joo, 2006). Concentrations of gelling agents showing desirable jelly textural properties were selected based on a preliminary experiment. Gelling agents were dissolved separately in water in a 500 mL glass beaker while heating at 70°C for 2 min. After the sugar/sugar substitutes were dissolved in the gelling solution for 2 min, carrot juice and anhydrous citric acid (Jungbunzlauer Austria AG, Wulzeshofen, Austria) were added to the mixture. The mixture was then boiled at 90°C for 3 min and poured into a cubical mold (2×2×2 cm3). The samples were cooled to 25°C for 30 min and placed in a refrigerator at 4°C for 2 h.
Texture profile analysis was performed using a rheometer (Compac-100; Scientific Co., Tokyo, Japan) containing a 5 mm diameter cylindrical probe at a table speed of 120 mm/min. The samples were cut into pieces (1×1×1 cm3) before analysis. Sample compression was set at 40%. Measurements were repeated five times.
The surface color of jelly was measured with a chroma meter (CR-300, Minolta Co., Osaka, Japan). The measurement was repeated five times. The results were expressed as L (lightness), a (redness-greenness), and b (yellowness-blueness).
Jelly products (2 g) were homogenized in distilled water (18 mL) using a homogenizer (PT 1200; Kinematica AG, Luzern, Switzerland) and centrifuged using Labogene 1248R centrifuge (Labogene Co., Ltd, Daejeon, South Korea) at 4,000 rpm for 10 min. The pH and °Brix of the supernatant were measured using a pH meter (FEP20; Mettler-Toledo, Schwerzenbach, Zurich, Switzerland) and a refractometer (Pocket refractometer PAL-1; ATAGO, Tokyo, Japan), respectively. The measurements were performed in triplicate.
Syneresis was analyzed as described previously (Nagasaka and Taneya, 1996) with certain modifications. A desiccator was conditioned at 75% relative humidity using saturated sodium chloride. The samples were placed on a 6 mesh sieve and stored in the desiccator at 4°C for 24 h. Syneresis was calculated using the following equation:
The melting-down rate was determined as described by Kawamura (1989). A sol sample (50 g) was poured into a 100 mL beaker. The sample was cooled at room temperature for 30 min and then stored at 4°C for 2 h. Subsequently, the gel sample was heated in a water bath (GO-90W; Jeio Tech, Daejeon, South Korea) at 30°C and 40°C for 10 min. The sample was placed on a 6 mesh sieve for 30 s, and the separated gel weights were measured. The melting-down rate was calculated as
Sensory evaluations were conducted to assess the preference of jelly according to the types of gelling agents and sugar. The sensory test was performed by a group of 25 semi-trained students. They evaluated the color, flavor, taste, texture, and overall acceptance on a seven-point hedonic scale (from 1 extremely bad to 7=extremely good). The sensory test was approved by Kyungpook National University Industry Foundation (Approval No: 2021-0018).
Results and discussion

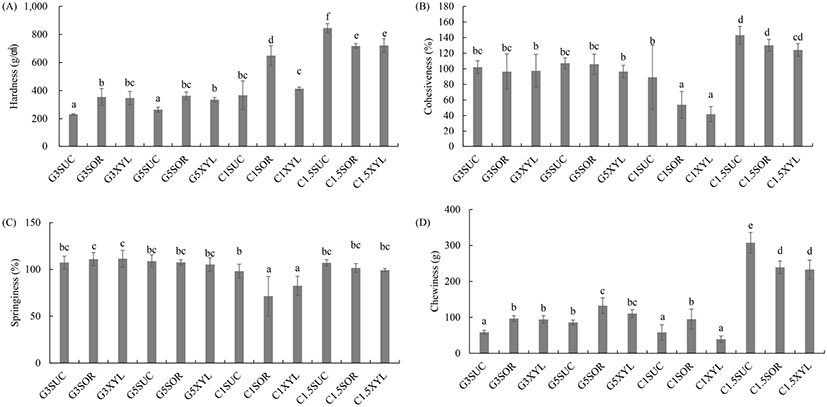

The textural properties of carrot jellies containing different gelling agents and sugars are shown in Fig. 1. Gelatin-based jellies containing SOR and XYL sugar substitutes showed a higher hardness than that of gelatin- based jellies containing SUC (Fig. 1A). However, increasing the gelatin concentration from 3% to 5% (w/v) did not significantly affect the hardness of gelatin-based jellies (p<0.05). The hardness of carrageenan-based jellies significantly increased with an increase in carrageenan concentration, regardless of the sugar substitute used (p<0.05). Similar results were obtained by Oh et al. (2013). The effect of sugar on hardness varied according to the carrageenan concentration used in jellies. When the carrageenan concentration used was 1%, the hardness of jelly containing SOR was higher than that of jellies containing other sugars. In contrast, 1.5% carrageenan-based jelly containing SUC showed higher hardness than that of carrageenan jellies containing other sugar substitutes.
The cohesiveness of gelatin-based jellies was not significantly affected by varying gelatin concentrations or sugar substitutes (Fig. 1B). In contrast, the cohesiveness of carrageenan-based jellies increased with an increase in carrageenan concentration. Jellies containing 1% carrageenan except for that containing 1% carrageenan and sucrose (C1SUC) showed lower cohesiveness than that of gelatin- based jellies, whereas jellies containing 1.5% carrageenan showed higher cohesiveness than that of gelatin-based jellies.
The springiness of gelatin-based jellies was not affected by varying gelatin concentrations or sugar substitutes. However, the springiness of carrageenan-based jellies containing SOR or XYL significantly increased with an increase in carrageenan concentration (p<0.05) (Fig. 1C).
The chewiness of carrot jellies increased with an increase in the concentration of gelling agent (Fig. 1D), and the effect was more noticeable in carrageenan-based jellies (concentration ranging from 1-1.5%). Among all samples, jellies containing 1.5% carrageenan showed high chewiness. Variations in chewiness were also observed in jellies based on sugar substitute used. Overall, carrot jelly prepared using 1.5% carrageenan and sucrose (C1.5SUC) showed considerably high chewiness (p<0.05).
A previous study reported that the gelation of carrageenan is affected by the -OH groups of sugars and sugar alcohols (including SOR and XYL) (Stenner et al., 2016). Shimizu and Matubayasi (2014) similarly reported that sugar alcohols play an important role in the gelation capacity of gelatin because sugar alcohol represents the main mediator of gelation, and it can also influence the structure of water molecules surrounding the biopolymer. Therefore, the different textural properties of jellies containing different sugars and sugar alcohols may be attributed to the different characteristics of the sugars and sugar alcohols.
The colors of the carrot jellies are presented in Table 2. Overall, the L, a, and b values of jellies containing gelatin decreased with an increase in gelatin concentration. Jellies containing gelatin (3%) and either SOR (G3SOR) or XYL (G3XYL) showed higher L, a, and b values than those of jelly containing gelatin (3%) and SUR (G3SUC); in contrast, jellies containing gelatin (5%) and either SUC (G5SUC) or XYL (G5XYL) showed higher L and b values than jelly containing gelatin (5%) and SOR (G5SOR). There were no significant differences in the color of jellies containing 1% carrageenan and different sugar substitutes (p<0.05). However, when carrageenan concentration was 1.5%, the color values of jelly containing carrageenan (1.5%) and SOR (C1.5SOR) were lower than those of jellies containing carrageenan (1.5%) and either SUC (C1.5SUC) or XYL (C1.5XYL). Similarly, a previous study reported that the color values of carrageenan-based jellies are affected based on the sugar substitute present (Lee et al., 2008). The color change may be attributed to pigment destruction or non-enzymatic browning during heating (Samakradhamrongthai and Jannu, 2021). Considering the identical conditions of thermal treatment used during jelly production, different effects of sugar/sugar alcohol on non-enzymatic browning may represent the main reason for the observed color differences (Naknaen and Itthisoponkul, 2015). During thermal treatment, the degradation of sucrose into glucose and fructose might have promoted the Maillard reaction. In contrast, the Maillard reaction occurs to a relatively lower extent in sugar alcohol than that in sucrose (Naknaen and Itthisoponkul, 2015). In addition, other factors, such as nutrients present in carrot juice and gelling agents, may have contributed to the difference in color of carrot jellies.
Syneresis involves the separation of a low-molecular- weight liquid present on the surface of a gel during storage. Syneresis mainly occurs due to a lack of equilibrium in the structure owing to the formation of new bonds among macromolecules (Toncheva et al., 1994). In jelly products, syneresis is influenced by the structure, quantity and type of the gelling agent, and the dry matter content (Toncheva et al., 1994).

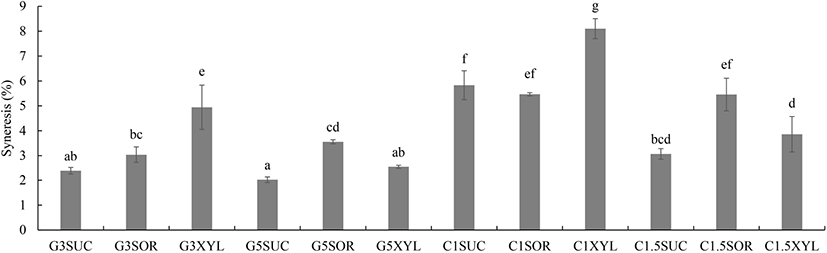

The syneresis of jelly products containing different gelling agents and sugar substitutes is shown in Fig. 2. Jellies prepared using gelatin (2.02-4.94%) showed lower syneresis than that in carrageenan-based jellies (3.07- 8.10%). This may be attributed to the immobilization of the aqueous phase by gelatin, subsequently reducing the extent of syneresis (Fiszman et al., 1999). When the gelling agents used were 3% gelatin and 1% carrageenan, XYL-based jellies G3XYL and C1XYL showed higher syneresis than jellies containing other sugars. In contrast, syneresis was reduced when the concentration of the gelling agent was increased to 5% gelatin and 1.5% carrageenan. Moreover, syneresis was the lowest in jellies containing SUC, followed by XYL and SOR, based on sugar substitute. When the sugar substitute was the same, syneresis decreased with an increase in gelling agent concentration, except for jellies containing SOR. Overall, the syneresis in G3SUC, G5SUC, and G5XYL jellies was significantly lower than that in other jellies (p<0.05). This may be due to differences in the hygroscopicity of the sugars. In addition, the water-holding capacity that varies with the composition of the jelly is known to affect syneresis (Farias et al., 2019; Sinthusamran et al., 2018).

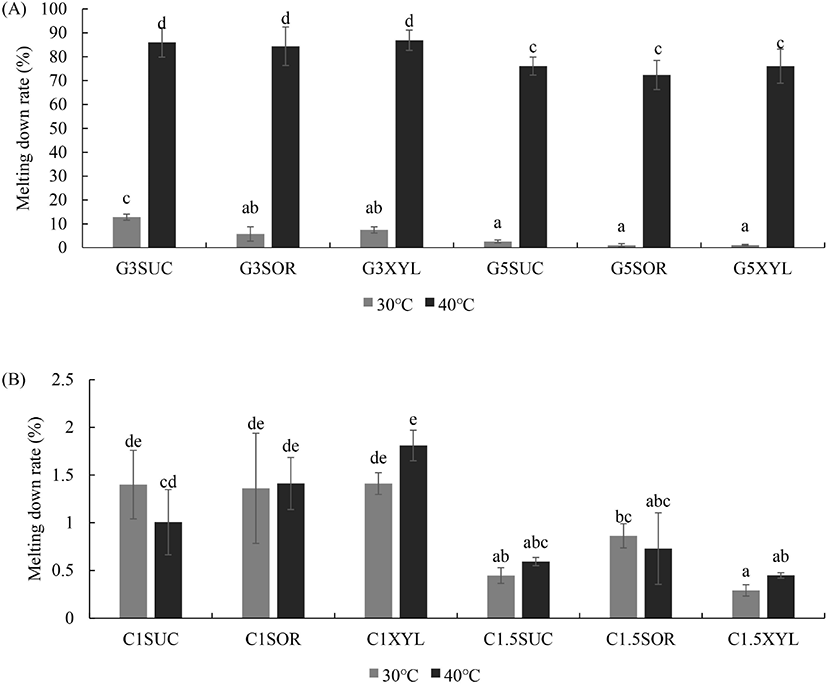

The melting-down rate was measured to evaluate the stability of the gel structure of the jellies (Lee et al., 2008). The melting-down rate at 30°C of gelatin-based jellies was slightly decreased with an increase in gelatin concentration (Fig. 3A). The melting-down rate of G3SOR at 30°C was significantly lower than that of G3SUC (p<0.05). This may be due to the effect of SOR in combination with citric acid, which protects the triple-helix-like structure of gelatin (Dai et al., 2020). In contrast, the melting-down rate of gelatin-based jellies increased considerably at 40°C (Fig. 3A). When the temperature was 40°C, the increase in gelatin concentration significantly reduced the melting-down rate; however, there was no difference in melting-down rates of jellies containing different sugar substitutes (p<0.05). When the temperature is higher than the melting point of gelatin, sugar substitutes may not affect the melting-down rate of jellies (Dai et al., 2020). The melting-down rate decreased as the concentration of carrageenan increased (Fig. 3B); however, there were no differences based on the melting temperature. Among the samples, C1.5SUC and C1.5XYL jellies showed low melting-down rates. Overall, gelatin- based jellies showed higher melting-down rates than those of carrageenan-based jellies. This may be due to the fact that carrageenan maintains a stable network structure at high temperatures, whereas gelatin changes to sol due to the loss of cross-linking (Kawamura, 1989). Similarly, Kim et al. (2020) reported that carrageenan-based jellies have a higher melting temperature than that of gelatin. The difference in the melting-down rate based on sugar/sugar alcohol content may be due to the gel-sol transition which varies with sugar and sugar alcohol substitutes (Shimizu and Matubayasi, 2014; Stenner et al., 2016).
The pH and °Brix values of the carrot jellies are shown in Table 3. Gelatin-based jellies showed a higher pH than that of carrageenan-based jellies. The pH increased with an increase in gelatin concentration. There was no correlation between carrageenan concentration and sugar substitute. When carrageenan was used as the gelling agent, XYL- containing jellies showed a lower °Brix than that of jellies containing SUC and SOR. The °Brix value of carrageenan- based jellies (3.10-3.43 °Brix) was lower than that of gelatin-based jellies (3.43-3.87 °Brix). The gelling agent might have affected the refractive index during °Brix measurements (Ryu et al., 2012).
Sensory evaluations were performed to assess the preference for jelly products containing different gelling agents and sugar substitutes. Tables 4 and 5 present the sensory attributes of carrot jellies, including color, texture, flavor, taste, and overall acceptance. The sensory test was performed in two parts. First, a sensory test was performed for jellies varying in gelling agents used (Table 4). The G3SUC jelly showed the highest overall acceptance, taste, and texture. G5SUC jelly showed the lowest score for taste and flavor. Similar to G5SUC jelly, a low sensory score for jelly produced using a high gelatin concentration has been reported in a previous study (SG Park et al., 2014). The incorporation of a high concentration of gelatin might have affected the taste and flavor of the jelly. Carrageenan-based jellies showed high scores for flavor and color; however, the texture and overall acceptance of carrageenan-based jellies were lower than those of gelatin-based jellies. Based on these results, G3SUC showed higher preferences for texture, taste, and overall acceptance. Therefore, 3% gelatin was selected as the gelling agent for subsequent sensory evaluation.
Abbreviations: 3% gelatin (G3), 5% gelatin (G5), 1% carrageenan (C1), 1.5% carrageenan (C1.5), and sucrose (SUC).
Means in the same column with different letters are significantly different per Duncan’s test (p<0.05).
The second sensory test was performed for jellies containing 3% gelatin that varied in sugar substitutes (Table 5). Lee et al. (2008) reported that fruit jellies produced using sugar substitutes may be less preferable owing to differences in the sense of taste of individuals. However, in this study, G3XYL showed a higher score for taste than that of G3SUC. XYL shows an effect similar to that of sugar; therefore, the sweetness of XYL pairs well with that of carrot juice, which might have influenced its high score (Choi et al., 2009). The flavor scores of the jellies were not affected by sugar substitutes. G3SUC showed a slightly higher score for texture, followed by G3XYL and G3SOR. G3SUC had a lower hardness and chewiness than those of jellies containing other sugars (Fig. 1). Jellies containing 1.5% carrageenan had the highest hardness and chewiness values. However, these jellies showing high hardness and chewiness showed low sensory scores for texture and overall acceptability. These results indicate that the hardness of jelly corresponds to a low sensory preference. Jellies containing XYL showed a brighter color than that of jellies containing other sugars, which might have influenced their high scores in the sensory test (Table 2). G3SUC and G3XYL showed a slightly higher overall acceptance than that of G3SOR, but the difference was not significant (p>0.05). Overall, the sensory results indicated that XYL may represent a suitable sugar substitute for jellies containing 3% (w/v) gelatin.
Abbreviations: 3% gelatin (G3), sucrose (SUC), sorbitol (SOR), and xylitol (XYL).
Means in the same column with different letters are significantly different per Duncan’s test (p<0.05).
Conclusion
This study confirmed that the properties of carrot jellies are substantially affected by the type and concentration of the gelling agent and the type of sugar substitute used. Jellies containing 1.5% (w/v) carrageenan showed higher hardness, chewiness, and cohesiveness than those of other jellies. When gelatin was used as the gelling agent, jellies containing SOR and XYL sugar substitutes showed higher hardness and chewiness than those of SUC-containing jellies. Among the jellies, C1SUC and C1SOR showed the lowest springiness. The syneresis and melting-down rate of jellies decreased with an increase in gelling agent concentration. Syneresis was lower in gelatin-based jellies than that in carrageenan-based jellies. In particular, G3SUC, G5SUC, and G5XYL jellies showed the lowest syneresis. Carrageenan-based jellies showed lower melting-down rates than those of gelatin-based jellies. Sensory evaluation indicated that 5% (w/v) gelatin-based jellies were associated with a low preference for taste and flavor. Moreover, carrageenan-based jellies showed a low score for overall acceptability and texture. Considering quality parameters and sensory attributes, 3% (w/v) gelatin was suitable for use as a gelling agent for producing carrot jelly, based on findings of previous studies and this study. Moreover, XYL was the most preferred sugar substitute for producing carrot jelly.
