Moisture sorption isotherms of fresh and blanched yacon tuber flours

Fresh yacon tubers, produced in Jangsu, Jeonbuk, Korea, were purchased online from Sun Village Market (Gwangju, Korea) and placed in a 4℃ refrigerator prior to the experiments. Yacon tubers were either rinsed in fresh water or rinsed and blanched by immersing in 80℃ distilled water for 2 min, drained on a stainless steel mesh screen for 3 min to remove excess water, peeled and cut into cylinders with a thickness of approximately 5.3 mm, and then immediately dried at 60℃ using a hot-air drying oven (WFO-700W, Tokyo Rikakikai Co., Ltd., Tokyo, Japan) for 12 h. Dehydrated yacon tubers were milled using an analytical mill (M20, IKA, Staufen, Germany) and sieved to yield particle sizes less than 300 μm.

Duplicate samples, about 2.0 g each, were taken and placed on glass petri dishes in desiccators with seven different saturated salt solutions of known relative humidity (7). The saturated salt solutions consisted of LiCl, CH₃COOK, MgCl₂, K₂CO₃, Mg(NO₃)₂, NaNO₂, and NaCl, allowing a a_w ranging from 0.11 to 0.75. These desiccators were kept in three incubators maintained at 25, 35, and 45℃, respectively. Samples were weighed until they reached equilibrium conditions (when three consecutive weight measurements gave the same reading). All analyses were carried out in duplicate and expressed on a dry basis, g H₂O/100 g solids.

Selected sorption isotherm equations, including BET, GAB, Oswin, Halsey, Henderson, Chung, and Smith, which are most widely used for food materials, were used (8). The coefficients of sorption equations were determined by nonlinear regression within the a_w of 0.11 to 0.75, whereas the BET equation was fitted to a_w up to 0.45. The goodness of fit of these equations was verified by the coefficient of determination (R²) and by the mean relative percentage deviation modulus (E, %) according to Eq. 1 (9).

Where n is number of experimental observations while m_i and mpi are experimental and predicted moisture content values, respectively. The model indicates a reasonably good fit for most practical purposes if E% values are below 10% (10).

The well-known BET (Eq. 2) and GAB (Eq. 3) equations were applied to determine the monolayer moisture values of the samples in this study. These models are expressed and rearranged as given below:

Where m_e is the equilibrium moisture content (%, dry basis); m₀ is the monolayer moisture content (%, dry basis); a_w is the water activity; and C_B, C_G and K are thermodynamic constant(s) for BET and GAB equation, respectively.

For example, the GAB (Eq. 3) can be rearranged to GAB polynomial expression (Eq. 4) to calculate the thermodynamic constants and monolayer moisture content (11).

The coefficient a, b, and c can be calculated by nonlinear regression analysis using Eqs. 5-7.

The experimental results obtained for water sorption in fresh and blanched yacon samples at different temperatures are shown in Fig. 1 (12). The experimental data indicate that the EMC decreased with increasing temperature to a constant a_w. This trend can be attributed to a reduction in the total number of active sites for water binding due to physical and/or chemical changes induced by temperature, which influence the mobility of water molecules and the dynamic equilibrium between the vapor phase and adsorbed phase (13). This suggests that yacon powder became less hygroscopic as temperature increased.

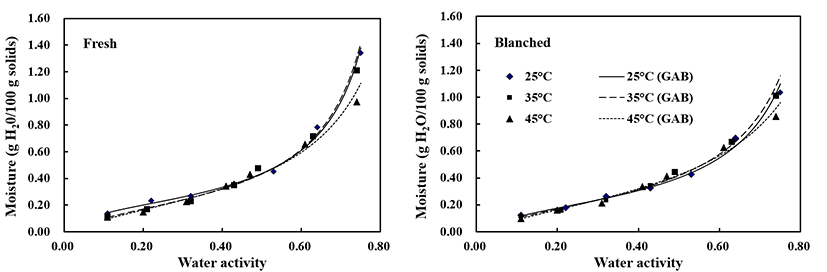

Fig. 1. . Experimental data and fit by the GAB model for isotherms of flours from fresh and blanched yacon samples, at different temperatures.

Download Original Figure

At a constant temperature, the EMC of both fresh and blanched yacon samples increased with a_w, and an intersection point was observed at a a_w around 0.6. This behavior manifested in the form of a J-shaped curve, which is a Type III isotherm. At low and intermediate a_w, EMC increased linearly with a_w, while at high a_w, EMC increased rapidly with a_w. Type III isotherms are typical of sugar-rich products since sugars can sorb more water and overcome the negative effect of temperature at higher hydration level (14). This type of isotherm occurs when the binding energy between water molecules is higher than that of the monolayer, probably due to the high amounts of carbohydrates and sugars (15). The obtained sorption isotherm curves agree well with those of high sugar content materials since yacon tubers contain significant amounts of FOS (1). On the contrary, food materials with low sugar content or high starch content do not display an intersection point with an increase in aw or temperature (16).

The blanched samples showed lower values for moisture equilibrium (smaller capacity for water sorption) than the fresh ones under most conditions. In other words, blanched yacon samples had a smaller capacity for water sorption due to the blanching process. Most likely, the high temperature used in blanching could have affected the sorption sites by altering protein structure and by enhancing the interactions of proteins with carbohydrates and lipids; consequently, the available sites of water adsorption decreased due to protein hydrophobicity (17). In addition, the lower EMCs for the blanched samples could be attributed to the lesser crystallinity and content of undamaged starch granules relative to those of the fresh ones (18), this also being associated with the loss of soluble solids during the pre-treatment (19). A similar blanching effect on sorption isotherms has been reported for African arrowroot lily (18), pumpkin (19), spinach leaves (20), and potato (21). Johnson and Brennan (22) indicated that the sorptive capacity of a product can be affected by denaturation processes such as heating, desalting, and pH changes. Fresh yacon samples had higher EMC than blanched ones when a_w was above about 0.40.

The sorption isotherm curves of fresh and blanched yacon samples are described as the EMC against water activities at different temperatures. Six mathematical models were used to fit the curves using nonlinear regression analysis, and the obtained parameter values are shown in Table 1. The BET model satisfactorily described the EMC of both the fresh and blanched yacon samples in the a_w range up to 0.43, as the hypothesis of the correct fit cannot be verified above this level (23). The GAB and Halsey models showed good fit (R²>0.98); however, the Chung and Smith models did not satisfactorily fit the experimental data. The GAB or Halsey model best described the experimental data over the whole range of a_w and temperatures, and it was the most suitable for the sorption isotherms of both yacon samples based on lowest relative errors (E<6.3%).

The residual plot distributions for the GAB equation for the fresh and blanched yacon samples at all temperatures are shown in Fig. 2. A model is considered acceptable if the residuals are uniformly scattered around the horizontal value of zero without showing systematic tendency towards a clear pattern (24). The residuals for the GAB model indicated no pattern distributions for the fresh and blanched yacon samples, and they were randomly scattered around zero. However, some large residuals existed at higher moisture content data points. These points are most likely outliers, as they did not exert considerable effects in the regression analyses (25). As also shown in Fig. 3, the GAB model provided a good fit to the experimental data for water sorption of both samples at all temperatures (R²>0.99).

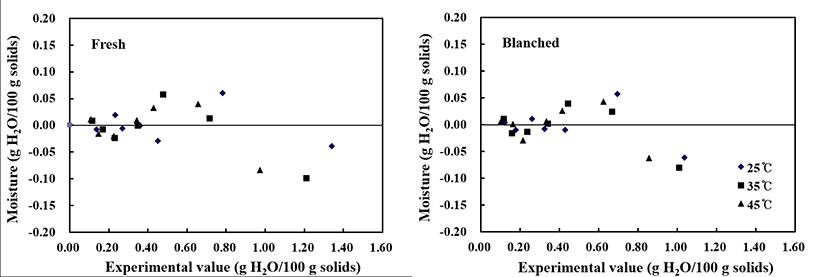

Fig. 2. . Residual plot distributions for the GAB equation for fresh and blanched yacon samples at all temperatures.

Download Original Figure

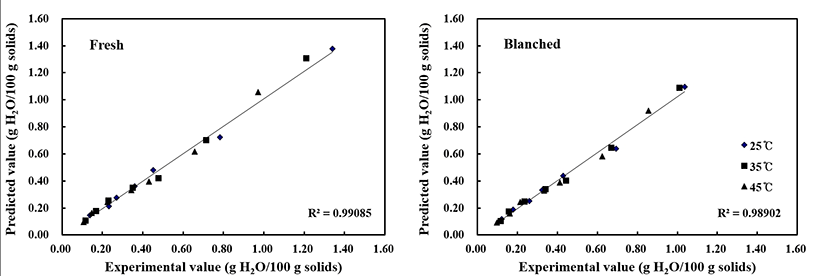

Fig. 3. . Comparison of experimental and predicted sorption isotherms at all the experimental conditions.

Download Original Figure

According to the BET and GAB equations (theoretical models), the monolayer moisture values (m₀), an important parameter in food deterioration for food systems can be estimated by fitting the sorption data. The m₀ values obtained for fresh yacon flours ranged from 0.23% to 0.26% for the BET model and from 0.20% to 0.26% for the GAB model, whereas values for blanched yacon flours ranged from 0.22% to 0.26% for the BET model and from 0.20% to 0.27% forthe GAB model. These results are similar to those for cupuassu (Theobroma grandiflorum) powder at 15-35℃, with m₀ values of 0.28-0.67% (26). The monolayer moisture values from the GAB model were lower than the values estimated by the BET model, whose behavior was reported for quince (27). The monolayer values are important since they represent water molecules that are adsorbed to form a monolayer on the sorption sites (23). At this ideal moisture content in boththe processes of drying and material storage, product stability will be guaranteed by avoiding chemical and biological reactions (9).

Sorption behavior of moisture in materials can be derived from theoretical interpretation of the GAB parameters (23). The C_B parameter, which indicates the difference in chemical potential between water molecules that have been adsorbed in the first layer and water molecules adsorbed in the subsequent layers (28), presented lower values with an increase in temperature, demonstrating that breakage of the monolayer bonds was temperature-dependent. The parameter K represents the difference in chemical potential between bulk liquid water molecules and molecules adsorbed in the multilayer (28). The values ranged from 1.05 to 1.14 and from 0.99 to 1.10 for the fresh and blanched yacon samples, respectively. When K values were close to 1, there was almost no distinction between the multilayer molecules and liquid molecules, which show the same characteristics as the molecules in the bulk liquid (28). In comparison with C_B and K values, C_B values were much higher than K values, indicating that the heat of sorption of the first layer was larger than that of the multilayer (17).
